FAQ's - Wireless Canopy SystemUpdated 2 days ago
How can I purchase the Wireless Canopy System?
You can purchase the Wireless Canopy System online here, call our sales team on (07) 3123 4715, or locate a store near you.
Where can I find the user manual for the Wireless Canopy System?
You can find the user manual on our Support Portal.
What components are featured in the Wireless Canopy System?

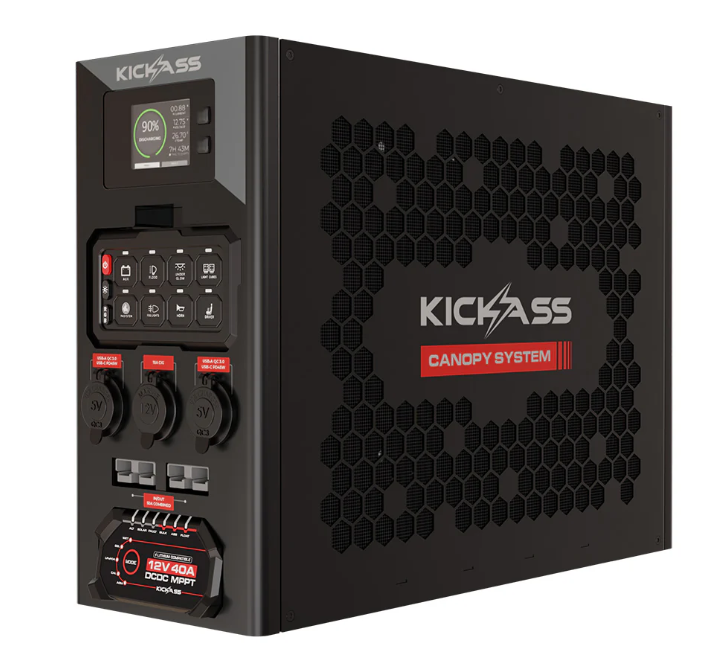

The Wireless Canopy System features a built-in 40A DC-DC Charger with Bluetooth, 8-Gang Wireless Switch Panel MKII, and Battery Remote Display Unit for system monitoring.
What connections are available in the Wireless Canopy System?
The Wireless Canopy System features multiple input and output connection points:
Front Connections
- 2 × USB-C (45W each socket)
- 2 × USB-A QC 3.0 (18W each socket)
- 2 × Anderson (Input/Output, shared 50A max)
- 1 × Cigarette Socket (10A max)
Rear Connections
- 3 × Anderson (Input/Output, shared 50A max)
- 1 × 50A Anderson Solar Input
- 1 x Three-pin Anderson
- 1 × 175A Anderson
Does the Wireless Canopy System work with other battery brands?
Yes, the Wireless Canopy System is compatible with other 12V AGM, GEL, WET, Calcium, and Lithium batteries, provided they meet the required specifications.
However, the Battery Remote Display Unit is only compatible with KickAss Smart Lithium Batteries and Ultra-X Batteries.
Can I mount an AC charger to the Wireless Canopy System?
Yes, the Wireless Canopy System is compatible with a 16A Smart ACDC Charger or a 32A Smart ACDC Charger, which can be mounted on the top of the unit.
Is the Wireless Canopy System compatible with a smart alternator?
The Canopy Power System includes a 40A DCDC charger with Bluetooth that is compatible with both fixed and smart alternators.
What mobile app can I use with the Wireless Canopy System?
You can use the KA Mobile App to monitor and adjust the inbuilt DCDC charger.
Can the DCDC Charger operate while the an external ACDC Charger is charging?
Yes, the DCDC Charger and a ACDC Charger connected to the Wireless Canopy System can operate simultaneously.
Why did my Anderson sockets in the Wireless Canopy System suddenly stop working?
The Anderson sockets may have tripped due to overload protection. Ensure the total load does not exceed 50A. Remove or reduce the load, and the sockets will automatically reset.
Can I pair my original 8 Gang Wireless Switch Panel with the new MKII version of the Wireless Canopy System?
No. The original 8 Gang Wireless Switch Panel is not compatible with the MKII Wireless Canopy System. Each version uses a different pairing protocol and internal firmware, so MKI and MKII components cannot be paired together.
Can I purchase an additional 8 Gang Wireless Switch Panel MKII separately?
Yes, an additional 8 Gang Wireless Switch Panel MKII can be purchased separately here.
How much does the Wireless Canopy System weigh?
The Wireless Canopy System weighs 9.35kg.
What are the dimensions of the Wireless Canopy System?
The Wireless Canopy System dimensions are 440mm (L) x 160mm (W) x 320mm (H)
SKU: KA40A8WSCPSL
