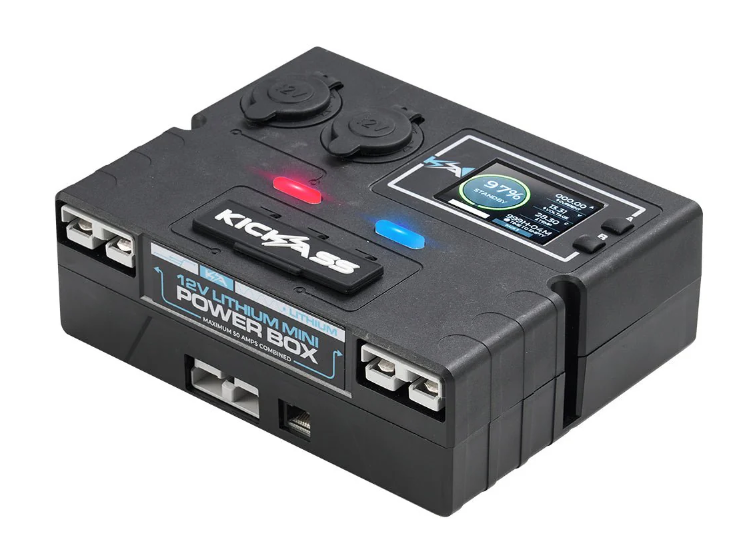

FAQ's - Lithium 12V Control BoxUpdated 4 hours ago

How can I purchase the Lithium 12V Control Box?

You can purchase the Lithium 12V Control Box online here, call our sales team on (07) 3123 4715, or locate a store near you.

Where can I find the user manual for the Lithium 12V Control Box?

You can find the user manual on our Support Portal.

Is the Lithium 12V Control Box waterproof?

No, the Lithium 12V Control Box is not waterproof, and it should be mounted in a secure location, protected from the elements.

Is the Lithium 12V Control Box a power source?

The Lithium 12V Control Box is a power distribution unit that must be connected to a power source for connected devices to operate or charge.

What batteries can you use with the Lithium 12V Control Box?

The Lithium 12V Control Box is compatible with KickAss Smart Lithium and Ultra-X batteries.

Can the Lithium 12V Control Box work with other battery brands?

Yes, but with limited functionality. The Lithium 12V Control Box can work with other battery types or brands; however, the LCD screen will not work as its only compatible with KA batteries.

What voltages does the Lithium 12V Control Box support on the USB-C PD port?

The Lithium 12V Control Box supports USB-C (PD, QC 3.0) output voltages of 9V/2A and 12V/1.5A, depending on your device’s or appliance's requirements.

What output ports are available on the Lithium 12V Control Box?

The Lithium 12V Control Box has 10 output options, including:


Gen 1
Gen 2
4 x USB-A
5V / 2.1A
2 x Cigarette Sockets
10A (combined)
25A (combined)
2 x Anderson Sockets
50A (combined)
50A (combined)
1 x USB-C1 PD
9V / 2A, 12V / 1.5A
1 x USB-C2 QC 3.0
9V / 2A, 12V / 1.5A


What is the difference between the Lithium 12V Control Box Gen 1 and Gen 2?

  • Gen 1: Comes with a pre-wired, plug-and-play fixed-length Anderson cable (to the battery) and a fixed barrel connector data cable.

  • Gen 2: Has a socket with a provided 5-metre RJ45 data cable, and allows you to connect your own desired length of Anderson cable to the battery (Anderson cable not included). Gen 2 also has an increased combined fuse of 25A for the cig sockets.

Does the Lithium 12V Control Box have a light?

The Lithium 12V Control Box has a built-in LED light with three brightness levels.

How do I connect the Lithium 12V Control Box to the battery?

To connect the Lithium 12V Control Box to the battery, you will need a Maxi Fuse Cable. Always use a short cable to minimise voltage drop.

How do I install the Lithium 12V Control Box?

Installation instructions for the Lithium 12V Control Box can be found in the User Manual.

How do I switch the display from Page 1  to Page 2 on the Lithium 12V Control Box?

To switch the display of the Lithium 12V Control Box, simply press the A button.

Is the screen time duration of the Lithium 12V Control Box adjustable?

Yes. The screen time can be set to 30 seconds, 1 minute, 2 minutes, 5 minutes, or 1 hour.

Why is the LCD screen of the Lithium 12V Control Box not working?

Please ensure that the RJ45 data socket is securely connected to the Lithium 12V Control Box and to the KickAss Smart Lithium or Ultra-X batteries.

How can I recover my KickAss Lithium battery from under-voltage protection mode using the Lithium 12V Control Box?

If the charger does not have a lithium wake-up or recovery mode, the battery may not charge because its under-voltage protection mode is active. You can use the under-voltage protection release feature of the Lithium 12V Control Box to recover the battery. You may follow the steps here.

What are the dimensions and weight of the Lithium 12V Control Box?

The dimensions of the Lithium 12V Control Box are 180mm (L) x 58mm (W) x 120mm (H)

Weight: 0.5kg



SKU: KAMINILCDPB
