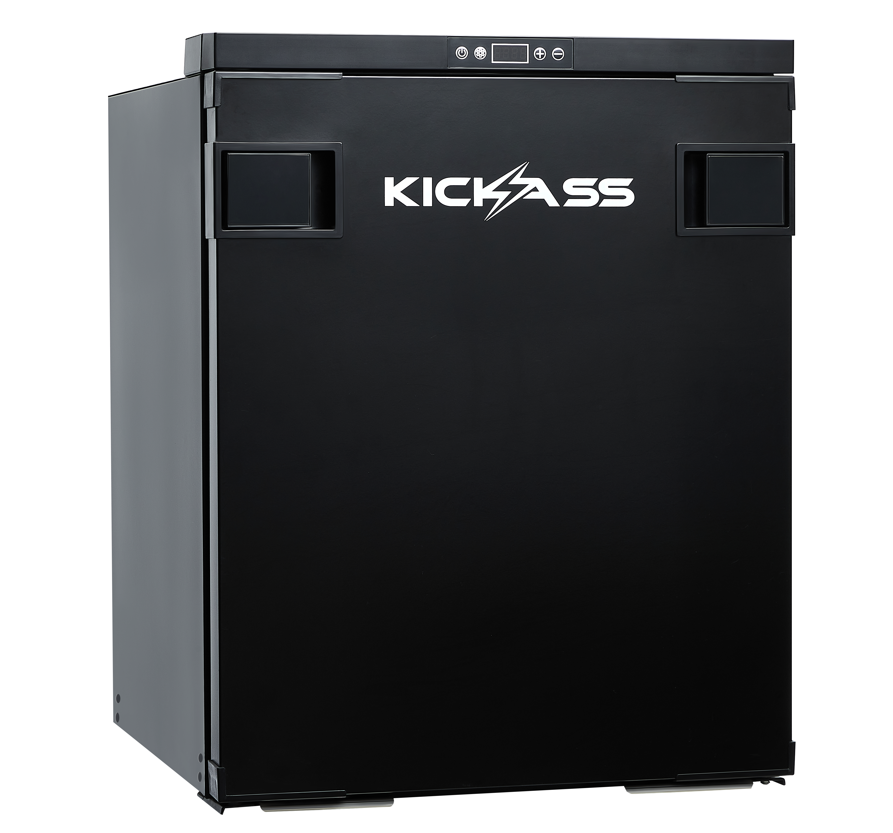

FAQ's - 80L Upright FridgeUpdated 6 days ago
How can I purchase the 80L Upright Fridge?
You can purchase the 80L Upright Fridge online here, call our sales team on (07) 3123 4715, or locate a store near you.
Where can I find the user manual for the 80L Upright Fridge?
You can find the user manual on our Support Portal.
What comes with the 80L Upright Fridge?
The 80L Upright Fridge includes an Anderson to Anderson 10AWG cable, 4 mounting brackets, 12 M4 screws, and a bottle opener.
What is the input power source of the 80L Upright Fridge?
The 80L Upright Fridge is designed to operate on both 12V and 24V DC power systems, making it ideal for use in vehicles, caravans, off-grid setups, and other mobile applications.
Note: This model does not support direct connection to 240V AC mains power.
What is the power consumption of the 80L Upright Fridge?
The 80L Upright Fridge has an average power draw of 2.8A per 24 hours at an ambient temperature of 32°C.
What are the cooling modes of the 80L Upright Fridge?
The 80L Upright Fridge has two cooling modes: High Power Mode (HH) and Eco Mode (ECO).
Can the door of the 80L Upright Fridge be opened both ways?
Yes. The 80L Upright Fridge door can be opened from either the left or right side handle, but do not open both at once to avoid damage and reduced cooling.
What is the compressor type of the 80L Upright Fridge?
The 80L Upright Fridge is equipped with a Secop PBC 2.5 compressor.
How do I turn the 80L Upright Fridge on or off?
To turn the 80L Upright Fridge on or off, simply press and hold the POWER button for three seconds.
What is the cooling temperature of the 80L Upright Fridge?
The 80L Upright Fridge has a cooling temperature range of +10°C to 0°C for the fridge and -5°C to -15°C for the freezer.
How do I adjust the temperature of the 80L Upright Fridge?
Press the [+] or [–] buttons on the 80L Upright Fridge to set the temperature between 0°C and 10°C (32°F to 50°F). Once the desired temperature is displayed, wait about five seconds until the display stops flashing to save the setting. The freezer will automatically adjust based the set fridge temperature.
How much ventilation does the 80L Upright Fridge require?
The 80L Upright Fridge should have at least 100 mm of clearance at the back and 50 mm around the sides for proper ventilation.
Does the 80L Upright Fridge have low-voltage protection?
Yes, the 80L Upright Fridge has three low-voltage protection settings:
- Low Mode (LO)
- Medium Mode (nE)
- High Mode (HI)
What size fuse should be used with the 80L Upright Fridge?
To protect your wiring and the appliance, it’s always recommended to use a fuse with any 12V setup. For the 80L Upright Fridge, we recommend using a 15A fuse. This rating provides sufficient protection for the fridge’s normal operating current while guarding against short circuits or power surges.
What adapter should I use to connect the 80L Upright Fridge to a cigarette socket?
To connect the 80L Upright Fridge to a cigarette socket, use the KickAss Anderson-to-cigarette-socket adapter (KAAND-CIGS). Make sure the socket is fused and can supply sufficient current for safe operation.
Can the 80L Upright Fridge connect to a Switch Panel?
Yes, the 80L Upright Fridge is compatible with a KickAss 8 or 12 Gang Switch Panel, wired into a 15A fuses slot.
Does the 80L Upright Fridge have a Bluetooth feature?
No. The 80L Upright Fridge does not support Bluetooth or have an app.
What are the temperature units of the 80L Upright Fridge?
The 80L Upright Fridge allows temperature settings in either Celsius (°C) or Fahrenheit (°F).
What are the dimensions and weight of the 80L Upright Fridge?
The dimensions of the 80L Upright fridge is 590mm (L) x 710mm (W) x 570mm (H)
Weight: 30kg
SKU: KAF-80UR
