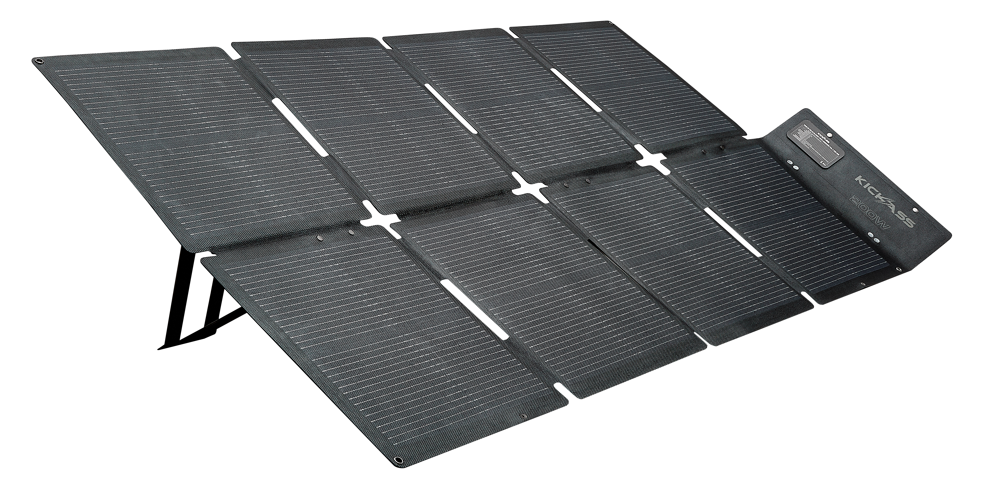

FAQ's - 200W DC Solar BlanketUpdated 4 days ago
How can I purchase the 200W DC Solar Blanket?
You can purchase the 200W DC Solar Blanket online here, call our sales team on (07) 3123 4715, or locate a store near you.
Where can I find the user manual for the 200W DC Solar Blanket?
You can find the user manual on our Support Portal.
How many outputs does the 200W DC Solar Blanket have?
The 200W DC Solar Blanket has five output ports:
1 x Anderson Plug | 200W max |
1 x DC5521 | 200W max |
1 x USB-C PD 3.0 | 100W |
2 x USB-A QC 3.0 | 18W (each) |
What solar charge regulator do you recommend using with the 200W DC Solar Blanket?
The 200W DC Solar Blanket pairs well with our 25A or 40A DC-DC charger, or our convenient inline 20A MPPT controller. Just make sure the solar regulator you use has a maximum solar input voltage above 25V.
How do I connect the 200W DCSolar Blanket to a KickAss Battery?
The 200W DC Solar Blanket is fitted with Anderson connectors making it easy to connect to a solar regulator (MPPT or DCDC) and then to your battery. You may need an Anderson to Anderson extension cable, or Anderson to ring terminal cable.
What is the open circuit voltage (Voc) of the 200W DC Solar Blanket?
The open circuit voltage of the 200W DC Solar Blanket is 25.2V.
What type of cells are used in the 200W DC Solar Blanket?
The 200W DC Solar Blanket uses N-Type TOPCon monocrystalline silicon cells, which can convert solar energy at efficiencies of up to 25%.
What is the IP Rating of the 200W DC Solar Blanket?
The 200W DC Solar Blanket has an IP67 rating; however, the junction box on the underside of the blanket is not waterproof.
How much does the 200W DC Solar Blanket weigh?
The 200W DC Solar Blanket weighs 5.85kg.
What are the dimensions of the 200W DC Solar Blanket?
When folded, the 200W DC Solar Blanket measures 326mm (L) x 330mm (W) x 68mm (H).
When set up, it measures 1708mm (L) x 848mm (W) x 15 mm (H).
SKU: KASB200
