FAQ's - 150Ah Lithium Power StationUpdated 21 hours ago
How can I purchase the 150Ah Lithium Power Station?
You can purchase the 150Ah Lithium Power Station online here, call our sales team on (07) 3123 4715, or locate a store near you.
Where can I find the user manual for the 150Ah Lithium Power Station?
You can find the user manual on our Support Portal.
How many outputs/inputs does the 150Ah Lithium Power Station have?
3 x Dual Sets of Anderson Input/Outputs (6 total) | 50A maximum per set |
1 x High-Current Anderson Inverter Output | 175A maximum |
2 x Cigarette Socket Outputs | 10A maximum per socket |
2 x USB-C Outputs | 45W |
2 x USB Quick Charge 3.0 Outputs | (5V/3.1A, 9V/2A, 12V/1.5A) |
What is the usable capacity of the 150Ah Lithium Power Station?
The 150Ah Lithium Power Station can safely use up to 80% of its total capacity, which equals approximately 120 amp-hours, without risking damage.
What DCDC charger is connected to the 150Ah Lithium Power Station?
The 150Ah Lithium Power Station includes a built-in 40A DCDC charger.
What size inverter can I use with the 150Ah Lithium Power Station?
The 150Ah Lithium Power Station can run inverters up to 2000W.
Can I connect an unregulated solar panel directly to the 150Ah Lithium Power Station?
Yes, you can connect an unregulated solar panel directly - but it must be connected to the dedicated solar input Anderson port located on the back of the lid. This port is internally wired to the unit’s built-in DCDC/MPPT solar regulator, which is specifically designed to handle unregulated solar input.
Important: Do not connect unregulated panels to other ports, as they bypass the built-in regulator and may damage the system.
What remote displays can I use with the 150Ah Lithium Power Station?
The 150Ah Lithium Power Station has an in-built display screen to monitor battery performance and real time current. Alternatively, you can connect to the Bluetooth app.
Does the 150Ah Lithium Power Station have a mobile app?
You can download the KickAss Mobile App from the Apple App Store or Google Play Store to monitor and manage your Power Station.
Can the Lithium 150Ah Lithium Power Station work with other battery brands?
The 150Ah Lithium Power Station includes a built in battery as the base. There is no option to replace or use another brand battery.
How do I switch the display from Page 1 to Page 2 on the 150Ah Lithium Power Station?
To switch the display, simply press the A button on the 150Ah Lithium Power Station.
Is the screen time duration of the 150Ah Lithium Power Station adjustable?
Yes. The screen time in the 150Ah Lithium Power Station can be set to 30 seconds, 1 minute, 2 minutes, 5 minutes, or 1 hour.
Why is the LCD screen of the 150Ah Lithium Power Station not working?
Please ensure that the RJ45 data cable is properly connected from the Power Station Lid to the remote display data port in the Power Station base/battery.
How safe and reliable is the 150Ah Lithium Power Station?
The 150Ah Lithium Power Station is equipped with a KickAss Battery Management System (BMS) and multi-voltage protection features, including over-voltage, under-voltage, overcharge, and over-discharge protection, ensuring safe and reliable operation.
How do I charge the 150Ah Lithium Power Station?
The 150Ah Lithium Power Station can be charged using the integrated DCDC charger via solar or alternator, or an external ACDC charger. Always charge the battery every three months to maintain healthy battery life.
Does the master switch of the 150Ah Power Station disconnect everything?
The master switch of the 150Ah Power Station disconnects everything except for the 175A Anderson-style plug and the LCD screen.
How much does a 150Ah Lithium Power Station weigh?
The 150Ah Lithium Power Station weighs 21.45kg.

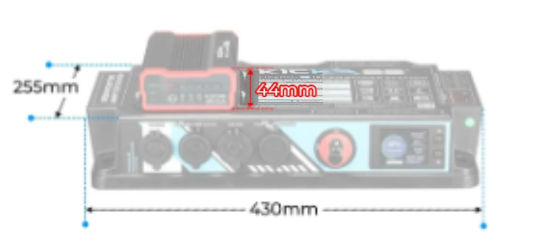

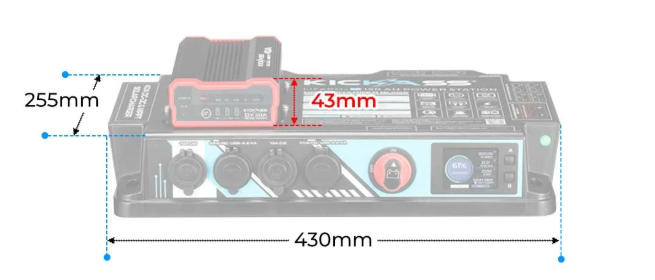

What are the dimensions of the 150Ah Lithium Power Station?
The dimensions are 430mm (L) x 220mm (W) x 345mm (395mm with DCDC) (H)
