FAQ's - 12 Gang Wireless Switch Panel MKIIUpdated a day ago
How can I purchase the 12 Gang Wireless Switch Panel MKII?
You can purchase the 12 Gang Wireless Switch Panel MKII online here, call our sales team on (07) 3123 4715, or locate a store near you.
Where can I find the user manual for the 12 Gang Wireless Switch Panel MKII?
You can find the user manual on our Support Portal.
What variations of the KickAss Wireless Gang MKII Switches are available?
We currently have two options available for the Wireless Gang Switches MKII:
What is the range of the 12 Gang Wireless Switch Panel MKII?
The 12 Gang Wireless Switch Panel can remotely operate your DC appliances/gear from up to 60m away from the antenna.
What is the IP rating of the 12 Gang Wireless Switch Panel MKII?
The 12 Gang Wireless Switch Panel MKII has an IP65 dust and water-resistant rating.
What is the difference between the 12 Gang Wireless Switch Panel and the 12 Gang Wireless Switch Panel MKII?
The main difference is that the 12 Gang Wireless Switch Panel MKII has magnetic charging integrated into the cradle, and you can pair two switch panels to one control unit.
Can I purchase an additional 12 Gang Wireless Switch Panel MKII separately?
Yes, an additional 12 Gang Wireless Switch Panel MKII can be purchased separately here.
Does the 12 Gang Wireless Switch Panel MKII come with a mounting bracket and holder?
Yes, the 12 Gang Wireless Switch Panel MKII comes with a mounting bracket and cradle.
Can I purchase the mounting bracket and charging cradle for the 12 Gang Wireless Switch Panel MKII separately?
Yes, you can purchase the Mounting Bracket and Charging Cradle separately.
Can I pair my original 12 Gang Wireless Switch Panel with the new MKII version?
No, the original 12 Gang Wireless Switch Panel is not compatible with the new MKII version.
Each version uses a different pairing protocol and internal firmware, meaning they must be paired with their corresponding control unit only.
How do I charge the 12 Gang Wireless Switch Panel MKII?
There are two ways to charge the 12 Gang Wireless Switch Panel MKII:
- Via the USB-C charging slot on the side of the switch panel, under the rubber cover.

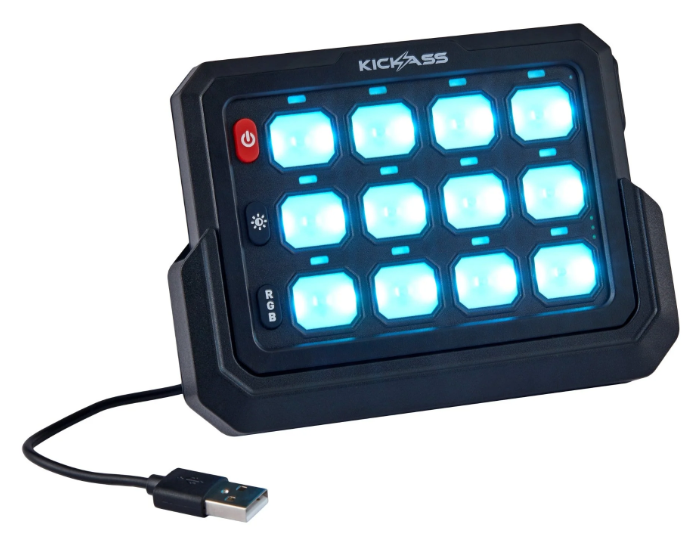

- Via the magnetic charging cradle.
What is the charging time of the 12 Gang Wireless Switch Panel MKII?
The 12 Gang Wireless Switch Panel MKII takes approximately 3 hours to fully charge.
What is the charging time of the 12 Gang Wireless Switch Panel MKII?
The 12 Gang Wireless Switch Panel MKII takes approximately 3 hours to fully charge.
How long does the 12 Gang Wireless Switch Panel MKII last?
The 12 Gang Wireless Switch Panel MKII can run for approximately 5 to 6 days on a full charge.
What is the power input specs of the 12 Gang Wireless Switch Panel MKII?
The 12 Gang Wireless Switch Panel MKII has a maximum power input of 960W at 12V and 1920W at 24V.
How many appliances can the 12 Gang Wireless Switch Panel MKII power?
The 12 Gang Wireless Switch Panel has 12 connection points for all your appliances, that can power up to a maximum of 80A at once.
How can I check the battery level of the 12 Gang Wireless Switch Panel MKII?
To check the battery level of the 12 Gang Wireless Switch Panel, simply press and hold the red power button for three seconds. The three LEDs on the right-hand side of the switch panel will illuminate to indicate the charge level, and will stay on for about 10 seconds.
What is the battery level indicator of the 12 Gang Wireless Switch Panel MKII?
The 12 Gang Wireless Switch Panel MKII has three battery level indicators:
1 LED Light = Low charge
2 LED Lights = Medium charge
3 LED Lights = Full charge
How will I know if the 12 Gang Wireless Switch Panel MKII is fully charged?
The charging indicator shows a red light while charging is in progress, and turns green once it is fully charged.
What is the length of the antenna cable of the 12 Gang Wireless Switch Panel MKII?
The antenna cable of the 12 Gang Wireless Switch Panel MKII is 3m long.
How much does the 12 Gang Wireless Switch Panel MKII weigh?
The 12 Gang Wireless Switch Panel, cradle, and bracket weighs 0.45kg.
The control unit weighs 0.6kg.
What are the dimensions of the 12 Gang Wireless Switch Panel MKII?
The dimensions of the 12 Gang Wireless Switch Panel MKII are 127mm (L) x 14mm (W) x 90mm (H).
The control box measures 192mm (L) x 30mm (W) x 133mm (H)
SKU: KAWLSWPANEL-12 - MKII
